Documenting the API with OAS 3

The Open API Specification (OAS 3) allows us to model and document our APIs in a machine- and human-readable format. OAS 3 has become the standard machine-readable representation of API schemas.

Why an OAS 3 Schema?

Having a standardized schema document enables API consumer and producer developers to formally agree on the API details in an automated way, providing tools for developers to perform basic data input validation and to provide developer documentation and the familiar swagger "Try it out" functionality.

Note

"Built-in" DRF/DJA support of openapi schema generation is deprecated in favor of using drf-spectacular and drf-spectacular-json-api which is what's documented here.

Viewing the OAS schema via the Swagger UI

The Swagger UI shows the API documentation and includes a "Try it out" feature which can be used to provide access to a live backend API. This includes the ability to login and obtain authorization to access the API.

TODO: Update to Swagger Editor 5.x

View the OAS schema via The Redoc UI

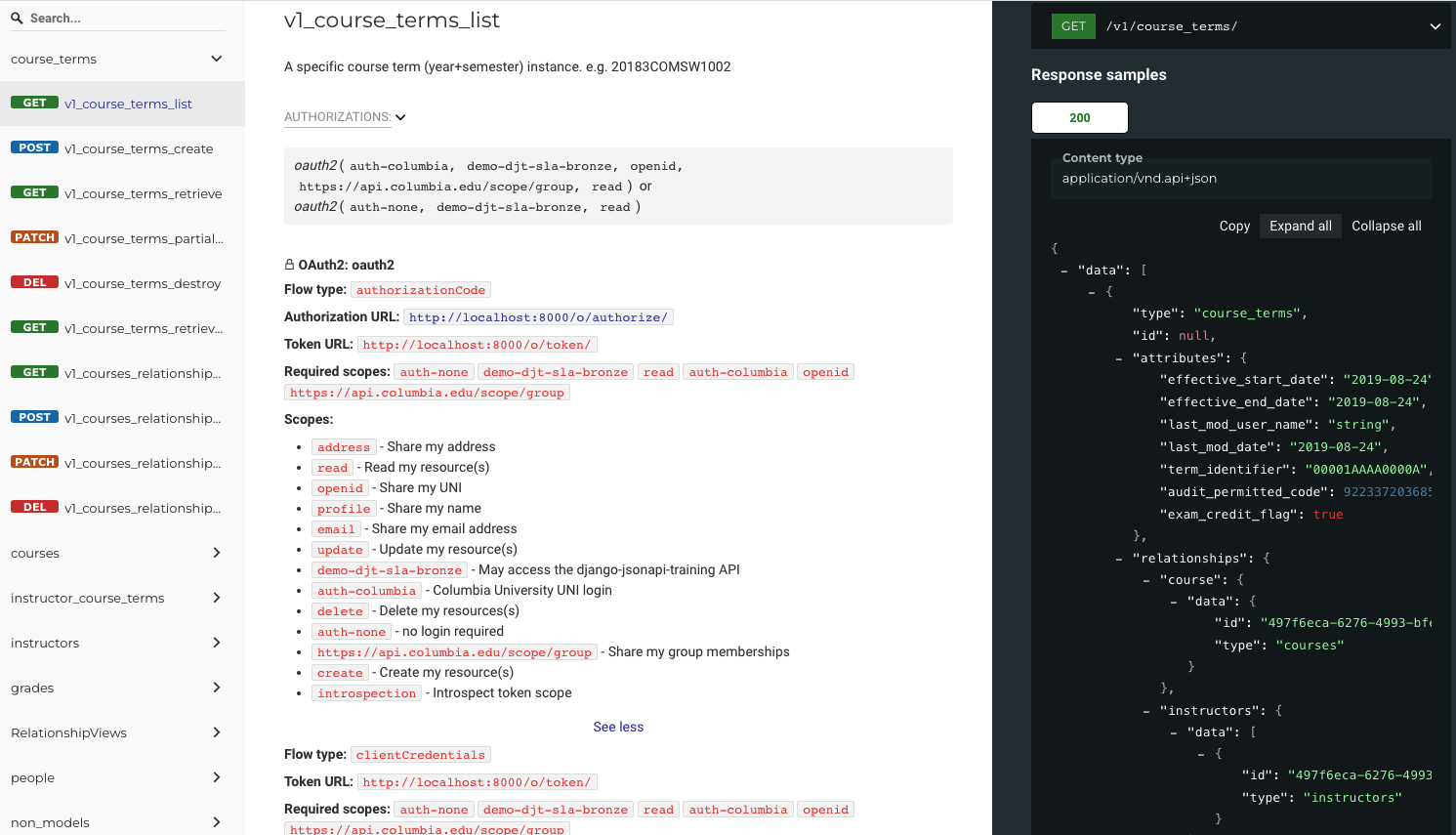

redoc provides a nice view of the API as well, although it doesn't include "Try it out".

Warning

The Swagger UI does not display OAS Security Requirements objects even though they may exist in the OAS schema document. Redoc does display that information.

Generating a static schema document

To generate a YAML schema document, use the spectacular management command:

./manage.py spectacular --file openapi.yaml

If you want a JSON schema document:

./manage.py spectacular --format openapi-json --file openapi.json

Or you can let tox do the work:

tox -e openapi

I've added a few commands to tox.ini to generate schema documents.

[testenv:openapi]
deps =
     -rrequirements.txt
allowlist_externals =
    /bin/sh
setenv =
    DJANGO_SETTINGS_MODULE = training.settings
commands =
    /bin/sh -c "python manage.py spectacular --file docs/schemas/openapi.yaml"
    /bin/sh -c "python manage.py spectacular --format openapi-json --file docs/schemas/openapi.json"

How "true" is the generated OAS schema?

See this comparison of the schema example generated by DSJA vs. what the server API actually returns. There are still a few gaps here.

Use the schema with the swagger-ui CLI

Warning

I'm still having some problems getting the OAuth2 authorization to properly integrate with Swagger UI. Watch this space for updates (or submit a PR that fixes it!).

You can try out your static schema document with swagger-ui-watcher: Install it with

npm install swagger-ui-watcher -g

and then use

swagger-ui-watcher -p 8080 docs/openapi.yaml

to open the schema document in your browser.

Use the schema with Postman

Postman can import an OAS 3 schema

Dynamic schema view

Our demo app has views defined for the openapi schema document and the swagger and redoc user interfaces.

from drf_spectacular.views import SpectacularAPIView, SpectacularRedocView, SpectacularSwaggerView, SpectacularSwaggerOauthRedirectView
# ...

urlpatterns = [
    # ...
    # OpenAPI schema using drf-spectacular and drf-spectacular-json-api:
    path('api/schema/', SpectacularAPIView.as_view(), name='schema'),
    # Optional UI:
    path('api/schema/swagger-ui/', SpectacularSwaggerView.as_view(url_name='schema'), name='swagger-ui'),
    path('api/schema/redoc/', SpectacularRedocView.as_view(url_name='schema'), name='redoc'),
    # not sure if this is needed or how to serve this when DEBUG is false
    path('api/schema/swagger-ui/oauth2-redirect.html', SpectacularSwaggerOauthRedirectView.as_view()),
    # ...
]

Open http://127.0.0.1:8000/api/schema/swagger-ui/ to get the swagger UI or http://127.0.0.1:8000/api/schema/redoc/ for redoc.

Adding what's missing to the generated schema

The generated schema is pretty much complete other than some of the issues noted in the comparison.

OAuth2 Client Configuration Changes

In order to use OAuth2, clients need to be configured in the Authorization Server to include these request_uris:

• http://127.0.0.1/api/schema/swagger-ui/oauth2-redirect.html (for swagger-ui)
• https://www.postman.com/oauth2/callback (for Postman)

Warning

As noted above, I'm having trouble getting this to work with Swagger UI. It works great with Postman.

DRF-spectacular and DRF-spectacular-json-api configuration

Settings

Most changes happen in settings.py with minor changes to urls.py as well:

diff --git a/training/settings.py b/training/settings.py
index 4d121bc..1c3a82e 100644
--- a/training/settings.py
+++ b/training/settings.py
@@ -11,6 +11,7 @@ https://docs.djangoproject.com/en/2.1/ref/settings/
 """
+from myapp import __title__, __version__, __author__, __email__, __license__, __license_url__, __copyright__

 # Build paths inside the project like this: os.path.join(BASE_DIR, ...)
@@ -55,6 +56,8 @@ INSTALLED_APPS = [
+    'drf_spectacular',
+    'drf_spectacular_sidecar',  # required for Django collectstatic discovery
 ]
 REST_FRAMEWORK = {
+    "DEFAULT_PAGINATION_CLASS": "drf_spectacular_jsonapi.schemas.pagination.JsonApiPageNumberPagination",
+    "DEFAULT_SCHEMA_CLASS": "drf_spectacular_jsonapi.schemas.openapi.JsonApiAutoSchema",

+SPECTACULAR_SETTINGS = {
+    'TITLE': __title__,
+    'DESCRIPTION':
+         '![CUIT logo](https://cuit.columbia.edu/sites/default/files/logo/CUIT_Logo_286_web.jpg "CUIT logo")'
+         '\n'
+         '\n'
+         '\n'
+         'A sample API that uses courses as an example to demonstrate representing\n'
+         '[JSON:API 1.0](http://jsonapi.org/format) in the OpenAPI 3.0 specification.\n'
+         '\n'
+         '\n'
+         '\n' + __copyright__ + '\n',
+    'VERSION': __version__,
+    'CONTACT': {
+        'name': __author__,
+        'email': __email__,
+    },
+    'LICENSE': {
+        'name': __license__,
+        'url': __license_url__,
+    },
+    'EXTERNAL_DOCS': {
+        'description': 'Read all about this JSONAPI demonstration app.',
+        'url': 'https://columbia-it-django-jsonapi-training.readthedocs.io'
+    },
+    'SERVE_INCLUDE_SCHEMA': False,
+    # OTHER SETTINGS
+    'SWAGGER_UI_DIST': 'SIDECAR',  # shorthand to use the sidecar instead
+    'SWAGGER_UI_FAVICON_HREF': 'SIDECAR',
+    'REDOC_DIST': 'SIDECAR',
+    # To provide different schema components for patch and post
+    "COMPONENT_SPLIT_REQUEST": True,
+    # to fix path parameter names for nested routes https://chibisov.github.io/drf-extensions/docs/#nested-routes
+    "PREPROCESSING_HOOKS": [
+        "drf_spectacular_jsonapi.hooks.fix_nested_path_parameters"
+    ],
+    "POSTPROCESSING_HOOKS": [
+        "drf_spectacular.hooks.postprocess_schema_enums",
+    ],
+    # this stuff gets added to SpectacularSwaggerView:
+    "SWAGGER_UI_OAUTH2_CONFIG": {
+        "clientId": "demo_djt_web_client",
+        "clientSecret": "demo_djt_web_secret",
+        "usePkceWithAuthorizationCodeGrant": True,
+    },
+    "OAUTH2_FLOWS": [ "authorizationCode", "clientCredentials", ],
+    "OAUTH2_AUTHORIZATION_URL": "http://localhost:8000/o/authorize/" if OAUTH2_SERVER == 'self' else OAUTH2_SERVER + '/as/introspect.oauth2',
+    "OAUTH2_TOKEN_URL": "http://localhost:8000/o/token/" if OAUTH2_SERVER == 'self' else OAUTH2_SERVER + '/as/token.oauth2',
+    "OAUTH2_REFRESH_URL": None,  # same as token url?
+    "OAUTH2_SCOPES": OAUTH2_PROVIDER["SCOPES"],
+    "SERVERS": [
+        {'url': 'http://localhost:8000', 'description': 'local dev'},
+        {'url': 'https://localhost', 'description': 'local docker'},
+        {'url': 'https://ac45devapp01.cc.columbia.edu', 'description': 'demo'},
+        {'url': '{serverURL}', 'description': 'provide your server URL',
+         'variables': {'serverURL': {'default': 'http://localhost:8000'}}}
+    ]
+}

diff --git a/training/urls.py b/training/urls.py
index e66a72f..65c12b8 100644
--- a/training/urls.py
+++ b/training/urls.py
@@ -22,9 +22,9 @@ from django.contrib.staticfiles.views import serve
+from drf_spectacular.views import SpectacularAPIView, SpectacularRedocView, SpectacularSwaggerView, SpectacularSwaggerOauthRedirectView

 urlpatterns = [
+    path('', RedirectView.as_view(url='api/schema/swagger-ui/', permanent=False)),
+    # OpenAPI schema using drf-spectacular and drf-spectacular-json-api:
+    path('api/schema/', SpectacularAPIView.as_view(), name='schema'),
+    # Optional UI:
+    path('api/schema/swagger-ui/', SpectacularSwaggerView.as_view(url_name='schema'), name='swagger-ui'),
+    path('api/schema/redoc/', SpectacularRedocView.as_view(url_name='schema'), name='redoc'),
+    # not sure if this is needed or how to serve this when DEBUG is false
+    path('api/schema/swagger-ui/oauth2-redirect.html', SpectacularSwaggerOauthRedirectView.as_view()),
 ]

Extending the schema for OAuth2 security requirements

myapp/django_oauth_toolkit.py is where our customizations get added:

from drf_spectacular.extensions import OpenApiAuthenticationExtension


class DjangoOAuthToolkitScheme(OpenApiAuthenticationExtension):
    target_class = 'oauth2_provider.contrib.rest_framework.OAuth2Authentication'
    name = 'oauth2'

    def get_security_requirement(self, auto_schema):
        """
        Generate the OAS [Oauth2 security requirement object](https://spec.openapis.org/oas/latest#oauth2-security-requirement).

        Looks through the view permissions for relevent OAuth2 permission classes such as TokenMatchesOASRequirements
        in order to generate a list of alternative required scopes.

        TODO: Better deal with hierarchical (AND, OR) permissions.
        """
        from oauth2_provider.contrib.rest_framework import (
            IsAuthenticatedOrTokenHasScope, TokenHasScope, TokenMatchesOASRequirements,
        )
        view = auto_schema.view
        request = view.request

        for permission in auto_schema.view.get_permissions():
            if isinstance(permission, TokenMatchesOASRequirements):
                alt_scopes = permission.get_required_alternate_scopes(request, view)
                alt_scopes = alt_scopes.get(auto_schema.method, [])
                return [{self.name: group} for group in alt_scopes]
            if isinstance(permission, IsAuthenticatedOrTokenHasScope):
                return {self.name: TokenHasScope().get_scopes(request, view)}
            if isinstance(permission, TokenHasScope):
                # catch-all for subclasses of TokenHasScope like TokenHasReadWriteScope
                return {self.name: permission.get_scopes(request, view)}
            # deal with hierarchical boolean permissions.
            scopes = getattr(view,"required_alternate_scopes")
            if scopes is None:
                scopes = getattr(view, "required_scopes")  # try for required_scopes
                return {self.name: scopes if scopes else []}
            return [{self.name: a} for a in scopes[auto_schema.method]]

    def get_security_definition(self, auto_schema):
        """
        Render the securitySchemes for our oauth2 service.
        """
        from oauth2_provider.scopes import get_scopes_backend
        from drf_spectacular.settings import spectacular_settings

        flows = {}
        for flow_type in spectacular_settings.OAUTH2_FLOWS:
            flows[flow_type] = {}
            if flow_type in ('implicit', 'authorizationCode'):
                flows[flow_type]['authorizationUrl'] = spectacular_settings.OAUTH2_AUTHORIZATION_URL
            if flow_type in ('password', 'clientCredentials', 'authorizationCode'):
                flows[flow_type]['tokenUrl'] = spectacular_settings.OAUTH2_TOKEN_URL
            if spectacular_settings.OAUTH2_REFRESH_URL:
                flows[flow_type]['refreshUrl'] = spectacular_settings.OAUTH2_REFRESH_URL
            scope_backend = get_scopes_backend()
            flows[flow_type]['scopes'] = scope_backend.get_all_scopes()

        return {
            'type': 'oauth2',
            'flows': flows
        }
