spectacular-jsonapi OAS example vs. API response

This is a comparison of the OAS schema generated by drf-spectacular-jsonapi vs. the actual API presented by the server.

Actual API response for List of /v1/courses/

Here's a GET /v1/courses/?filter[id]=c823b5de-6018-4878-80e9-932d20eaa18a (a list filtered to one result):

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
{
    "links": {
        "first": "http://localhost:8000/v1/courses/?filter%5Bid%5D=c823b5de-6018-4878-80e9-932d20eaa18a&page%5Bnumber%5D=1",
        "last": "http://localhost:8000/v1/courses/?filter%5Bid%5D=c823b5de-6018-4878-80e9-932d20eaa18a&page%5Bnumber%5D=1",
        "next": null,
        "prev": null
    },
    "data": [
        {
            "type": "courses",
            "id": "c823b5de-6018-4878-80e9-932d20eaa18a",
            "attributes": {
                "effective_start_date": null,
                "effective_end_date": null,
                "last_mod_user_name": "admin",
                "last_mod_date": "2018-10-07",
                "school_bulletin_prefix_code": "CEFKX9",
                "suffix_two": "00",
                "subject_area_code": "ENGB",
                "course_number": "00217",
                "course_identifier": "ENGL3189X",
                "course_name": "POSTMODERNISM",
                "course_description": "POSTMODERNISM"
            },
            "relationships": {
                "course_terms": {
                    "meta": {
                        "count": 1
                    },
                    "data": [
                        {
                            "type": "course_terms",
                            "id": "a1d34785-cc25-4c1c-9806-9d05a98068c7"
                        }
                    ],
                    "links": {
                        "self": "http://localhost:8000/v1/courses/c823b5de-6018-4878-80e9-932d20eaa18a/relationships/course_terms/",
                        "related": "http://localhost:8000/v1/courses/c823b5de-6018-4878-80e9-932d20eaa18a/course_terms/"
                    }
                }
            },
            "links": {
                "self": "http://localhost:8000/v1/courses/c823b5de-6018-4878-80e9-932d20eaa18a/"
            }
        }
    ],
    "meta": {
        "pagination": {
            "page": 1,
            "pages": 1,
            "count": 1
        }
    }
}

drf-spectacular-jsonapi example

Here's an example response generated by drf-spectacular-jsonapi:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
{
  "data": [
    {
      "type": "courses",
      "id": "string",
      "attributes": {
        "effective_start_date": "2024-07-25",
        "effective_end_date": "2024-07-25",
        "last_mod_user_name": "string",
        "last_mod_date": "2024-07-25",
        "school_bulletin_prefix_code": "string",
        "suffix_two": "st",
        "subject_area_code": "string",
        "course_number": "string",
        "course_identifier": "stringstr",
        "course_name": "string",
        "course_description": "string"
      },
      "relationships": {
        "course_terms": {
          "data": [
            {
              "id": "3fa85f64-5717-4562-b3fc-2c963f66afa6",
              "type": "course_terms"
            }
          ]
        }
      }
    }
  ]
}

Differences vs. API

The following HTTP links are missing: * data self links. * Pagination links: first, last, next, pref. * Relationship links: self, related.

I suspect this may be due to introspecting the ModelViewSets instead of the Serializers. In this case, the HyperlinkedModelSerializer is used rather than the ModelSerializer.

The Meta objects are also missing.

(scroll left-right to see the two columns.)

API response Spectacular example
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
"links": {
    "first": "http://localhost:8000/v1/courses/?filter%5Bid%5D=c823b5de-6018-4878-80e9-932d20eaa18a&page%5Bnumber%5D=1",
    "last": "http://localhost:8000/v1/courses/?filter%5Bid%5D=c823b5de-6018-4878-80e9-932d20eaa18a&page%5Bnumber%5D=1",
    "next": null,
    "prev": null
},
"meta": {
    "pagination": {
        "page": 1,
        "pages": 1,
        "count": 1
    }
}

1


 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
"relationships": {
    "course_terms": {
        "meta": {
            "count": 1
        },
        "data": [
            {
                "type": "course_terms",
                "id": "a1d34785-cc25-4c1c-9806-9d05a98068c7"
            }
        ],
        "links": {
            "self": "http://localhost:8000/v1/courses/c823b5de-6018-4878-80e9-932d20eaa18a/relationships/course_terms/",
            "related": "http://localhost:8000/v1/courses/c823b5de-6018-4878-80e9-932d20eaa18a/course_terms/"
        }
    }
},

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
"relationships": {
  "course_terms": {
    "data": [
      {
        "id": "3fa85f64-5717-4562-b3fc-2c963f66afa6",
        "type": "course_terms"
      }
    ]
  }
}

RelationShipViews are incomplete

TODO: No longer breaks on RelationShipViews but the example response looks incomplete.

1
2
3
4
/Users/ac45/src/django-jsonapi-training/myapp/views.py:213: Warning [CourseTermViewSet]: could not derive type of path parameter "related_field" because model "myapp.models.CourseTerm" contained no such field. Consider annotating parameter with @extend_schema. Defaulting to "string".
/Users/ac45/src/django-jsonapi-training/myapp/views.py:189: Warning [CourseViewSet]: could not derive type of path parameter "related_field" because model "myapp.models.Course" contained no such field. Consider annotating parameter with @extend_schema. Defaulting to "string".
/Users/ac45/src/django-jsonapi-training/myapp/views.py:301: Warning [InstructorViewSet]: could not derive type of path parameter "related_field" because model "myapp.models.Instructor" contained no such field. Consider annotating parameter with @extend_schema. Defaulting to "string".
/Users/ac45/src/django-jsonapi-training/myapp/views.py:229: Warning [PersonViewSet]: could not derive type of path parameter "related_field" because model "myapp.models.Person" contained no such field. Consider annotating parameter with @extend_schema. Defaulting to "string".

Also complains about non-unique operation IDs due to related_field:

1
2
3
4
Warning: operationId "course_terms_retrieve" has collisions [('/v1/course_terms/{id}/', 'get'), ('/v1/course_terms/{id}/{related_field}/', 'get')]. resolving with numeral suffixes.
Warning: operationId "courses_retrieve" has collisions [('/v1/courses/{id}/', 'get'), ('/v1/courses/{id}/{related_field}/', 'get')]. resolving with numeral suffixes.
Warning: operationId "instructors_retrieve" has collisions [('/v1/instructors/{id}/', 'get'), ('/v1/instructors/{id}/{related_field}/', 'get')]. resolving with numeral suffixes.
Warning: operationId "people_retrieve" has collisions [('/v1/people/{id}/', 'get'), ('/v1/people/{id}/{related_field}/', 'get')]. resolving with numeral suffixes.

Quality of parameters in OAS schema

The DSJA query parameter support is top notch.

Good support of fields, include, filter.

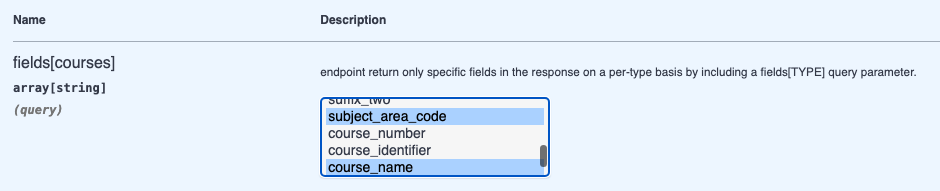

For example, the course sparse fieldsets fields parameter enumerates all the possible fields that can be specified. One can select one or more of them from the swagger UI "try it":

Swagger UI sparse fieldsets enumeration

and the resulting query properly includes them:

1
http://127.0.0.1:8000/v1/courses/?fields[courses]=course_terms,school_bulletin_prefix_code

Similarly, include enumerates the possible values to include.

Filters are also complete and differ from the DJA implementation only in that the conventional Django double-underscore is used, e.g. filter[course_terms__term_identifier__lt] vs. the DJA choice to accept the double-underscore but also allow and document single dot, e.g. filter[course_terms.term_identifier.lt].

Missing sort paramter

The sort parameter is missing.
